Containerised Hybrid Power: Proven Technology for NZ
Explore our containerised systems, based on our proven Australian designs. We're bringing this self-contained, transportable hybrid generator technology to New Zealand, locally built and supported, to deliver 24/7 off-grid power with integrated solar, battery storage, and backup generation for your site.
Key Features & Benefits
Our containerised power systems, based on proven Australian designs, deliver reliable, clean energy. NZ-built units will offer these key features for commercial and remote applications.
Cost Efficiency
More economical to rent than traditional diesel generators, with significant savings for medium to long-term projects.
Fuel Savings
Reduce diesel consumption by up to 98%, dramatically cutting operational costs and minimizing refueling logistics.
High Solar Capacity
Features a large solar array for significant on-site energy generation, maximizing renewable power utilisation and efficiency.
Reduced Maintenance
Fewer moving parts mean less downtime, lower service costs, and higher reliability than diesel-only generators.
Reliable 24/7 Power
Integrated solar, battery storage, and backup generation delivers uninterrupted power in any weather conditions.
Smart Energy Management
Remote monitoring and automated optimization reduce operational overhead and maximize efficiency.
Containerised Power System Technology

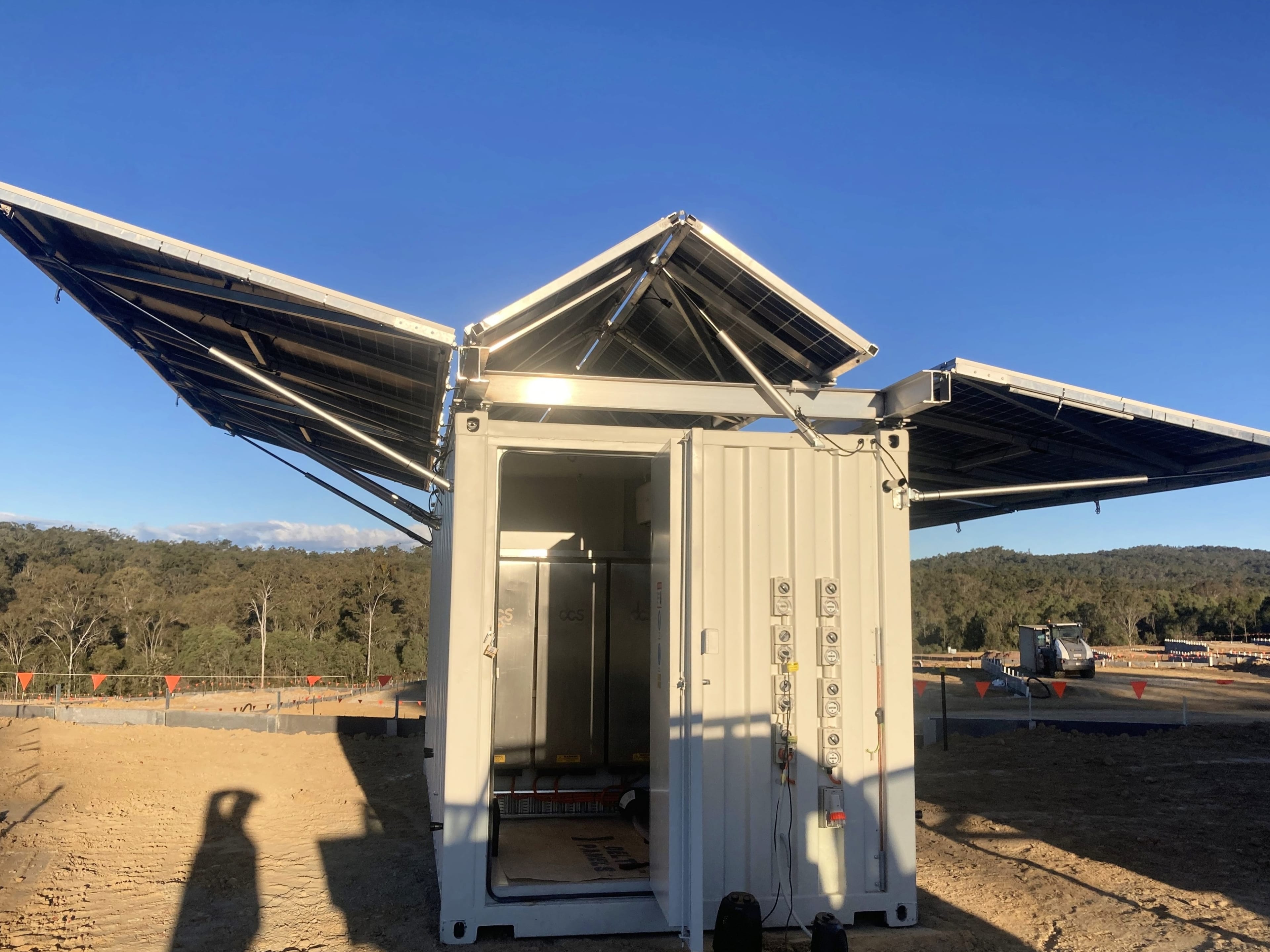

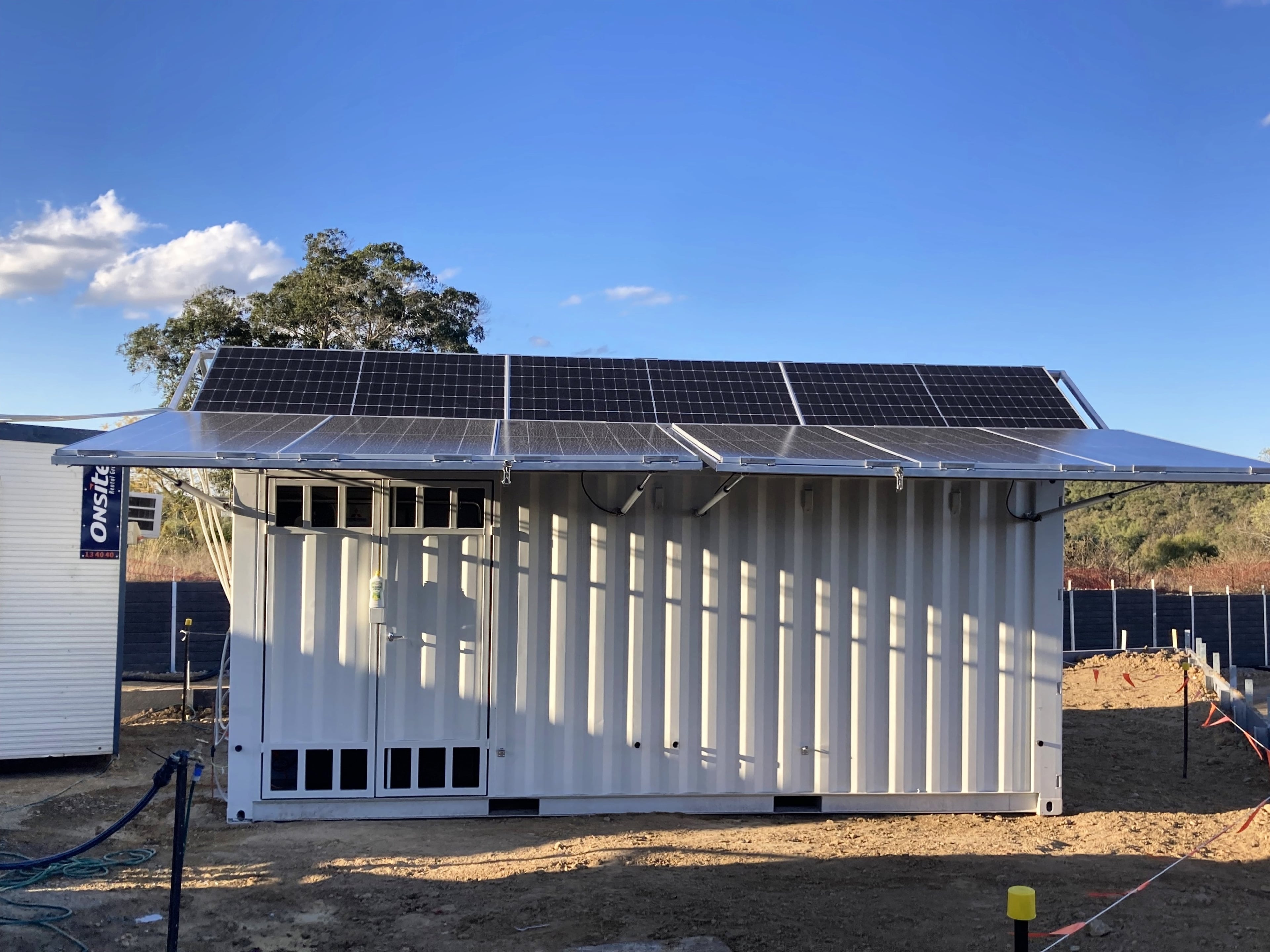

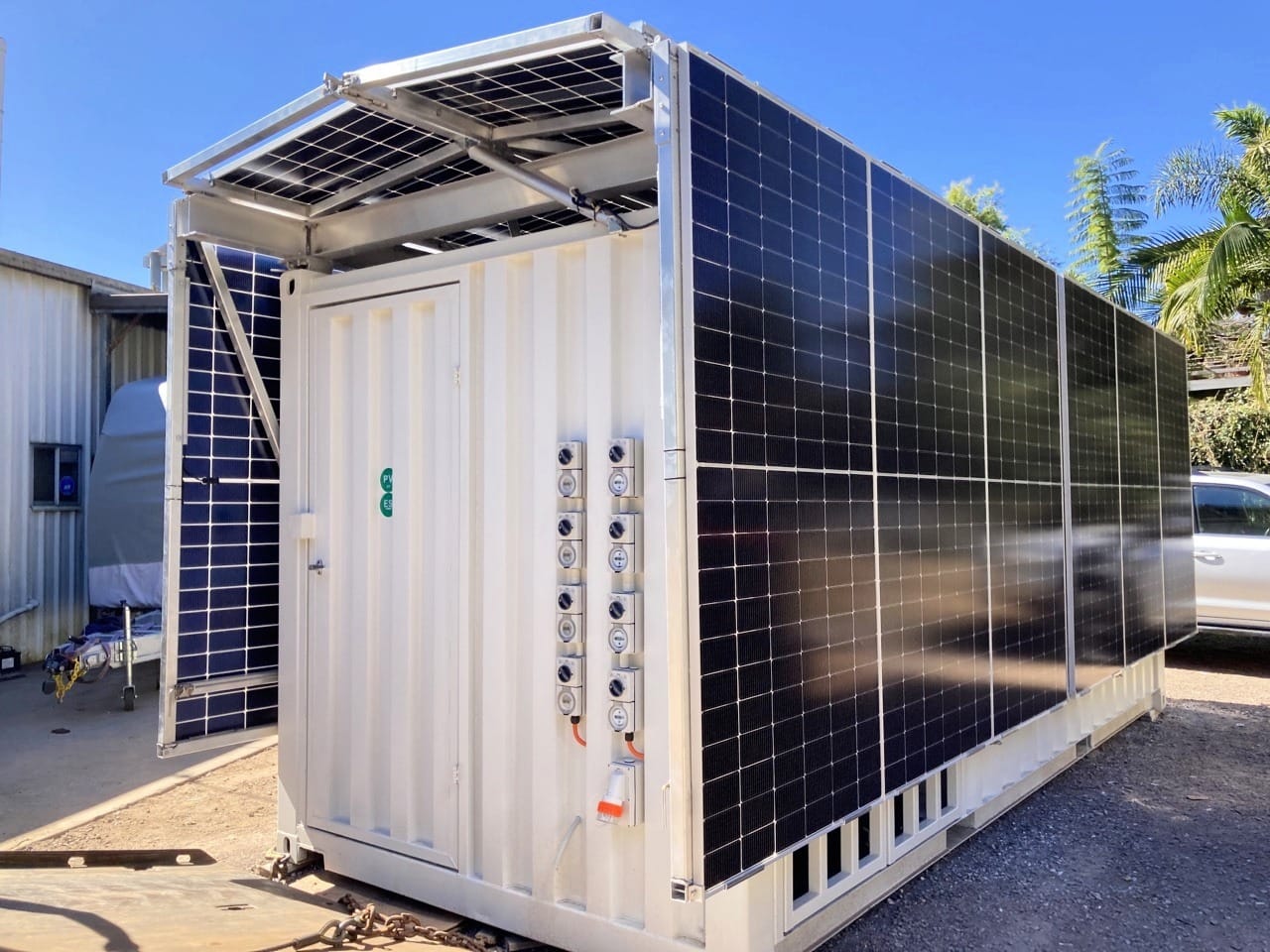

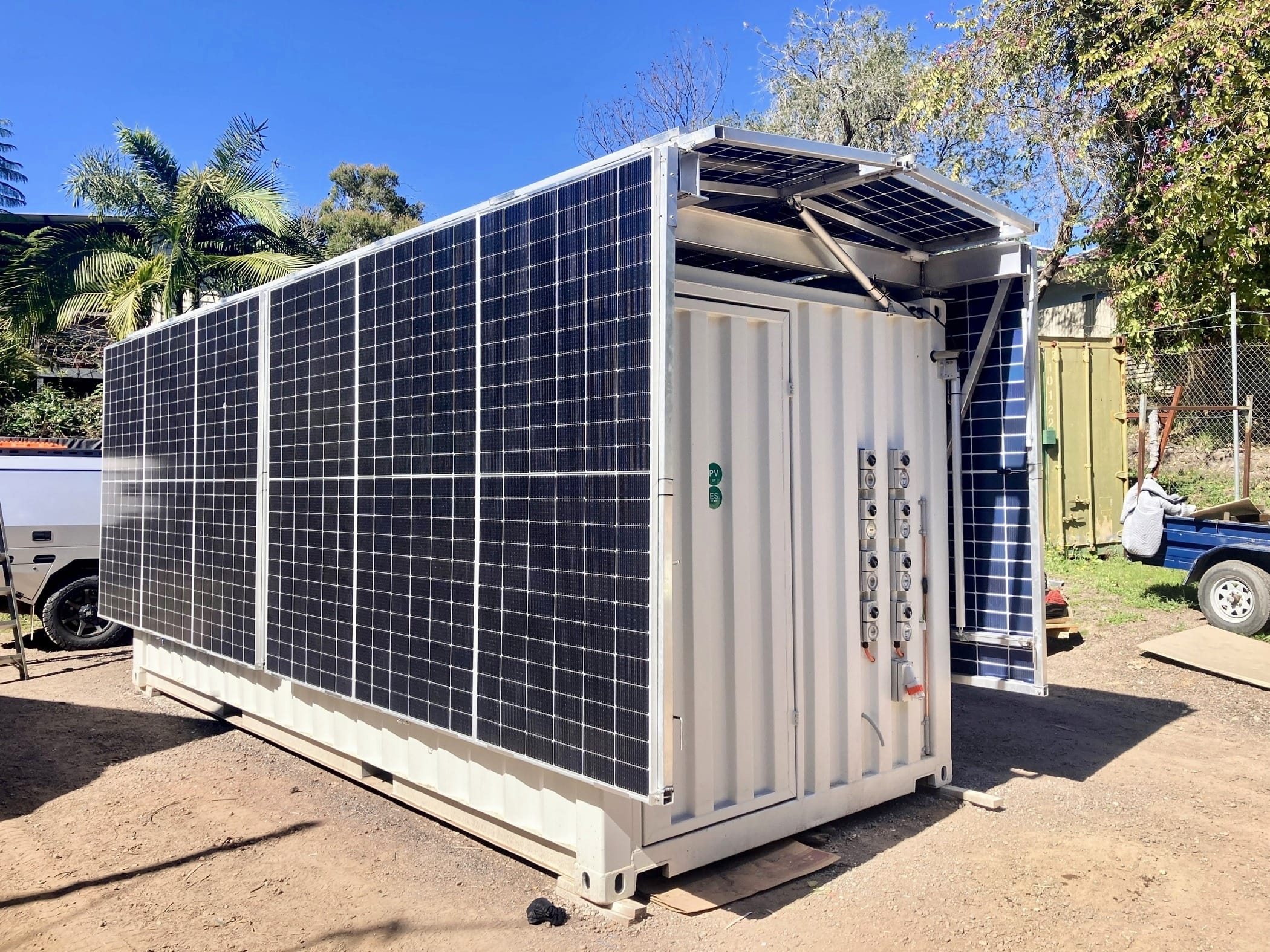

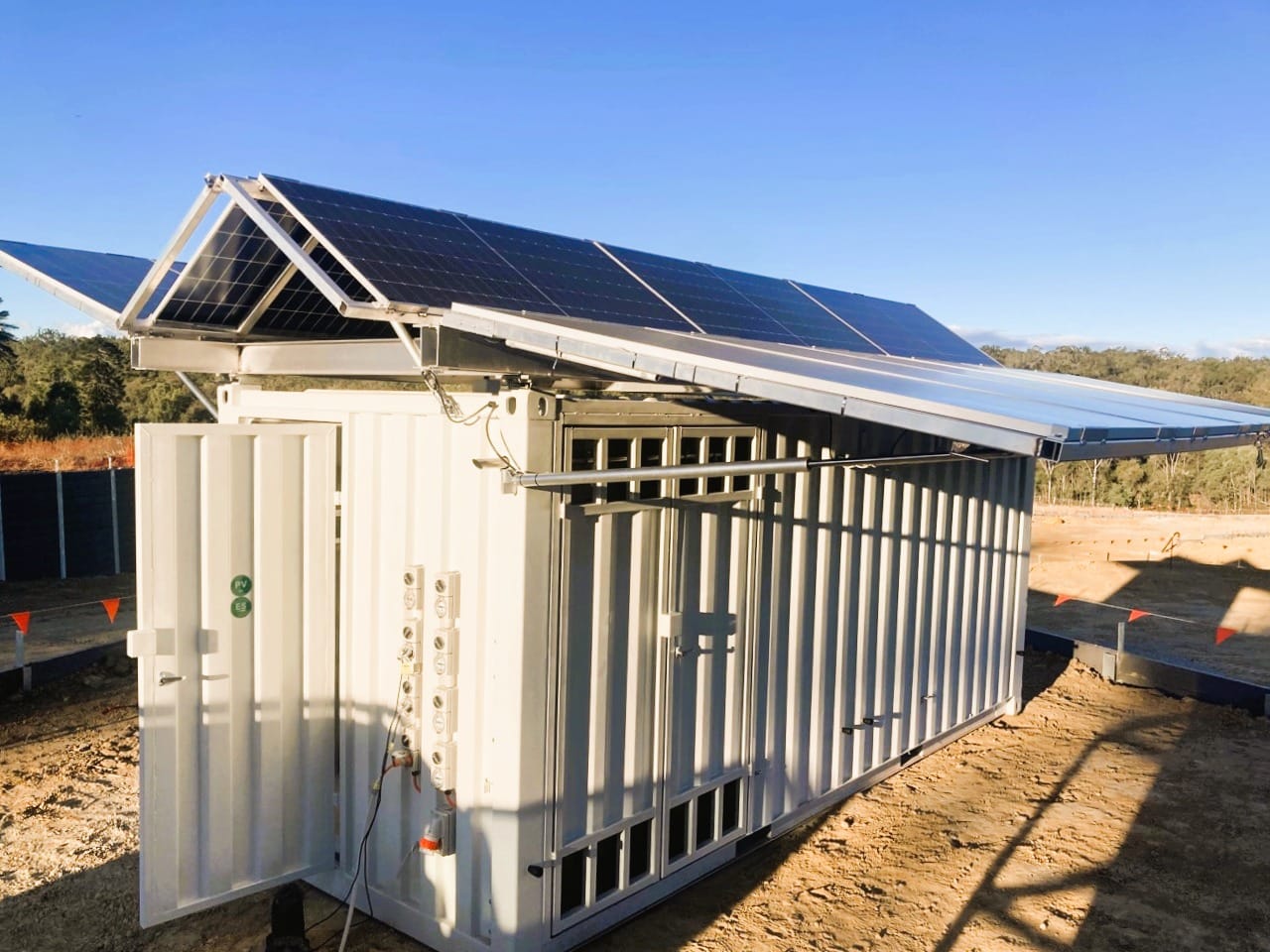

The YHI-1, an example from our Australian rental fleet, is a remotely monitored, self-contained hybrid generator. This technology, which we are bringing to New Zealand with local manufacturing, provides 24/7 power through rechargeable lithium-ion battery storage combined with solar generation and integrated back-up generation.
Our NZ-built rental units will be easily transportable for rapid deployment for emergency power or any situation requiring off-grid power such as events, construction sites or field operations. A simple electrical interface will support connection to any building or electrical appliance, enabling users to realize the benefits of reliable, clean power.
Real-World Performance: YHI (Australia)
See how our containerised system technology performs in demanding Australian field conditions, demonstrating the capability we are bringing to New Zealand.
Case Study: YHI-1 Containerised System Deployment
38% less cost
Same amount of power, but much lower operating costs than renting a conventional diesel generator. This translates to significant savings over the project duration.
98% less generator run hours
4582 less hours of generator operation, thanks to the integrated solar array, charger, battery and inverter systems. This dramatically reduces maintenance requirements and extends generator life.
98% less fuel
Only used during inclement weather, lower generator run time yields lower fuel / refueling costs. This significantly reduces operational expenses and maintenance requirements.
30.21 tons CO2 reduction
A direct benefit of lower engine run times and fuel consumption. This significant carbon footprint reduction helps meet sustainability goals and environmental requirements.
Noise abatement
A reduced noise footprint with only less than 40dB (quiet office or refrigerator). This makes it ideal for noise-sensitive environments and improves working conditions.
100% uptime
Remotely monitored by SOBOS with client cloud app login, ensuring reliability is achieved. Continuous monitoring prevents downtime and enables proactive maintenance.
Experience the Difference On-Site
Real-world benefits that transform your worksite experience
Renewable Daytime Hours
Integrated solar panels generate renewable energy during peak sun hours, perfectly matching high-demand periods like air conditioner use on sunny days.
Ideal for Civil Construction
Perfectly aligned with civil sites where sunny working hours synergize with energy needs for maximum efficiency.
Natural Shade Canopy
Solar panels create a shaded gathering area for workers during breaks, improving morale and transforming downtime.
Silent, Clean Operation
Enjoy cost-effective power that runs silently with minimal emissions, creating a better working environment.
Technical Specifications (Based on Australian YHI-1 Model)
The following specifications are for our YHI-1 containerised power system, part of our Australian rental fleet. These are illustrative of the technology and build quality we are bringing to New Zealand. NZ-specific models will be locally manufactured and may have tailored specifications.
Performance Specifications
| AC Voltage | 240V |
| Phase(s) | Single |
| Frequency | 50Hz |
| Energy Storage | 45kWh |
| Power, max continuous | 15kW |
| Power, peak | 25kVA |
| Internal DC Voltage | 48V |
| Solar Array Capacity | 10.44kW |
| Backup Generation | 11kVA |
| Daily Solar Generation | 60-70kWh |
Environmental Specifications
| Operating Temp | -20 to 50C |
| Control Room Temp | Ambient |
| Operating Humidity | Up to 100% |
| Max. Elevation | 3000m |
| Environment | Outdoor |
| Ingress Rating | IP67: Batteries, Solar Panels, Linear Actuators |
| IP56: Wiring, Inverters | |
| Noise level | <40dB at 7m |
| Working footprint (m2) | 56.25 m2 |
| Orientation | Long axis of container to face North / South preferably |
Mechanical Specifications
| Dimensions (LxWxH transport) | 7200 x 2440 x 3080mm |
| Dimensions (LxWxH deployed) | 7200 x 7100 x 4052mm |
| Dimensions (LxWxH int. storage) | 4800 x 2300 x 2390mm |
| Weight | 3478kg |
Generator Replacement Indication
A system like our Australian YHI-1 containerised unit typically replaces a 20-25 kVA diesel generator. Contact us to discuss your specific NZ project needs.
Applications & Use Cases
Our containerised hybrid power systems are versatile and adaptable for various industries and applications.
Civil Construction Sites
Power for civil construction projects and site offices with clean, reliable energy.
Roadworks Operations
Reliable power for road maintenance, traffic management systems, and temporary site facilities along transport corridors.
Industrial Operations
Support for remote industrial sites and processing facilities with reliable power.
Additional Applications
Versatile power for events, telecommunications, agricultural operations, and emergency backup.
Frequently Asked Questions
Common questions about our containerised power systems
What is a Containerised Mobile Renewable Power System (MRPS)?
The MRPS is a self-contained, container-based power solution integrating solar, battery, and backup generation for 24/7 off-grid power. We are bringing this technology to New Zealand, with units planned for local assembly and support, based on our proven Australian designs.
What are the benefits of renting an MRPS for my NZ project?
Renting our upcoming NZ hybrid generators will offer significant cost savings through reduced fuel and maintenance, without large capital outlay. They provide sustainability benefits and reliable power, tailored for New Zealand commercial operations.
What are the key features of the MRPS systems for NZ?
Our NZ systems, currently under development for the local market, will feature rugged, transportable designs with integrated energy sources for clean, dependable power. Rapid deployment and scalability will make them ideal for various NZ remote and temporary sites.
What are the technical specifications for the NZ MRPS models?
The specifications detailed on this page (e.g., YHI-1) are for an Australian model and serve as an example of the technology. Our New Zealand MRPS units will be locally built and may have specifications tailored to local conditions and requirements. Please contact us for the latest information on NZ models.
What are typical use cases for MRPS in New Zealand?
Our MRPS units will be ideal for emergency power, temporary events, construction projects, and as backup for critical infrastructure across New Zealand. They will also suit off-grid agricultural and telecom operations.
How can I get more information or an example spec sheet?
You can download an example spec sheet (based on our Australian YHI-1 model) from this page. For the latest information on our upcoming New Zealand systems or to discuss your project, please contact our NZ team through the inquiry form.
